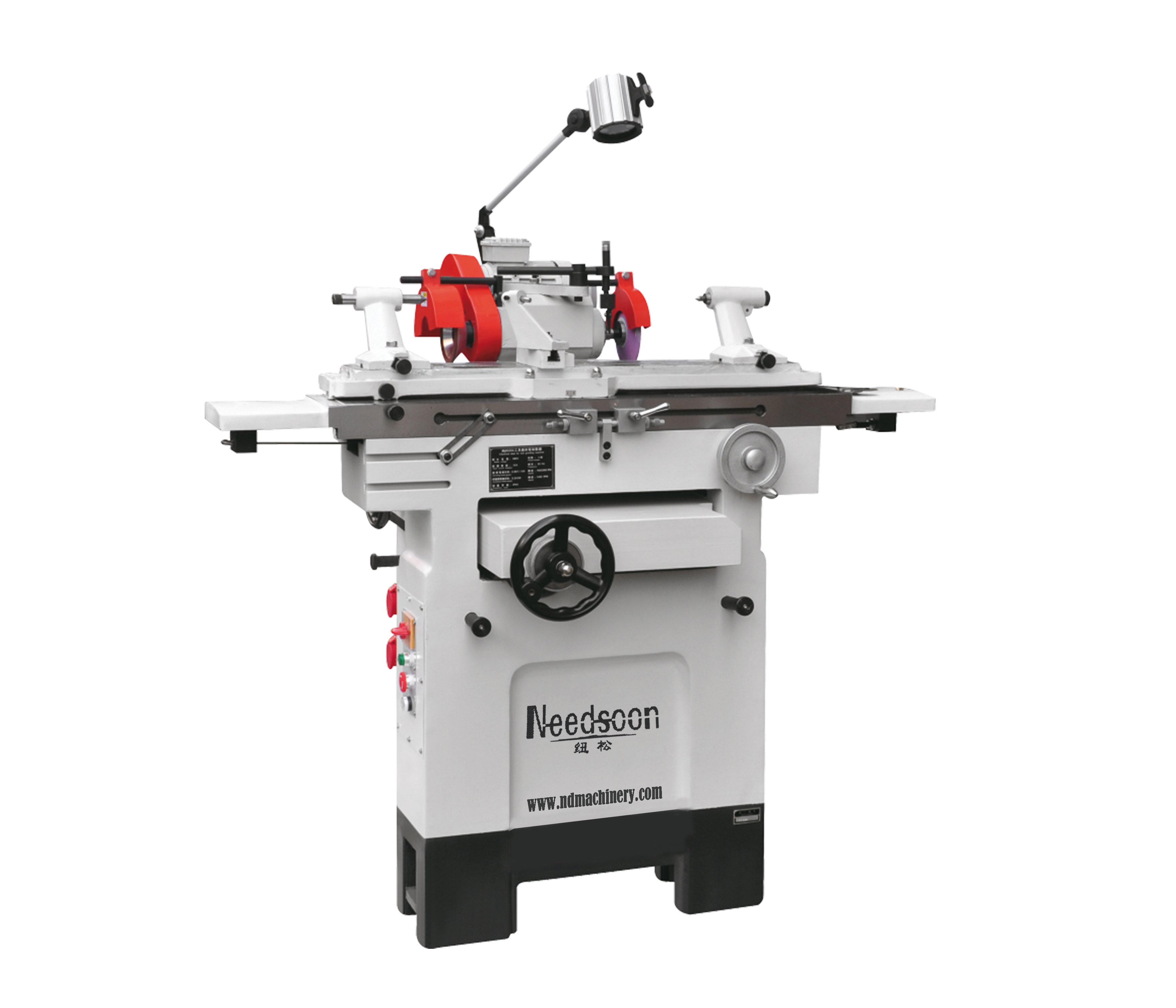

Universal tool grinder
ND-6025Q universal tool grinding machinery
- grind different type of tools
- Product description:
Product Features
♦ The operating table adopts high-precision linear guide rails, the table is stable and the operation is easy;
♦ The spindle adopts imported bearings, operating table and the taper can be adjusted;
♦ With a variety of accessories can be ground: forming tools, end mills, R-type milling cutters, reamers, turning tools, R-type turning tools, gear cutters, drill bits, engraving knives, full back cutters, chamfering knives, round knives, outer grinding, planar grooves, forming surface, etc.
Specifications
| Type | GD-6025Q |
| Longitudinal Travelof the Operating table | 300mm |
| Horizontal Travelof the Operating table | 170mm |
| Elevating Distance of Wheel Head | 140mm |
| Rotating Angle of Wheel Head | 360° |
| Speed of Grinding Wheel | 3600RPM |
| Main motor | 550W 220V/380V |
| Taper of spindle | MT 3# |
| The workbench Size | 130X680mm |
| Grinding Wheel Size | 125 x 50 x 32mm |
| Net Weight / Gross Weight | 165 / 185kg |
| Packing size LxWxH（cm） | 76x74x73cm |
