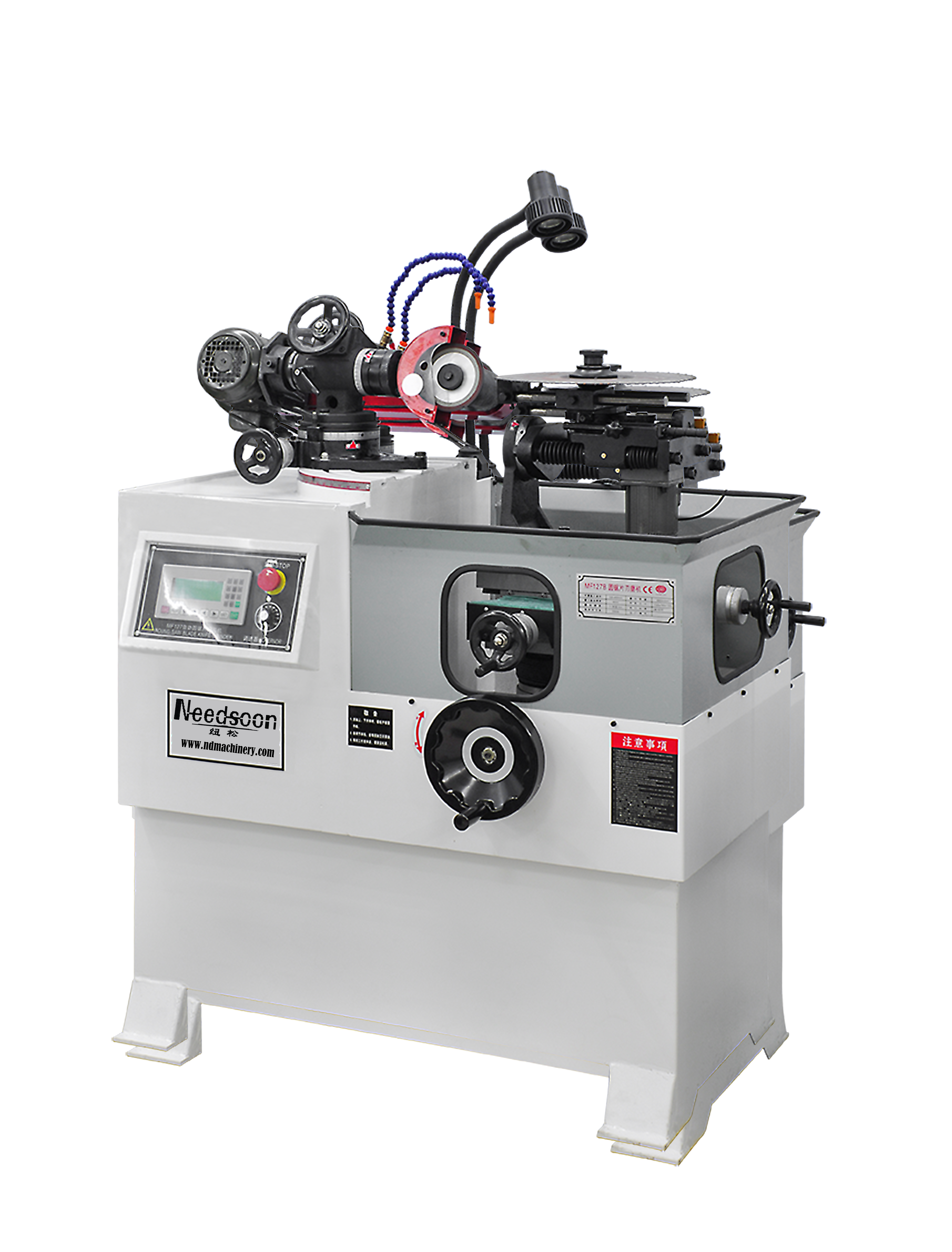

ND-450Q Automatic Saw Blade Grinder

Saw blades grinder
circle saw blades grinder
for HSS saw blade
Product description:
INQUIRY

Features:

♦ All iron casting of this machine are made of spheroidal graphite cast iron (FCD-45) to ensure accuracy and increase wear resistance;

♦ All the adjustment rods are carefully arranged to easily adjust the cutting angle, back clearance angle, tooth depth and pitch, so the saw blade can be sharpened quickly and accurately;

♦ Used stepless belt pulley, the required speed can be adjusted with the changes of pitch;

♦ The wheel head can swing up and down, can easy grind the chamfer without changing the grinding wheel;

♦ The thickness of the saw blade can be easily adjusted, there is a scale that directly shows the thickness of the adjustment;

♦ The transmission part is driven by the grinding wheel motor and the structure helps to achieve a reliable and safe drive;

♦ The end of the feed gripper has ultra-hard tungsten carbide, that minimizes the wear and achieves precise feeding;

♦ Select the guide wheel according to the number of teeth;

♦ Can grind triangular and circle-arc teeth;

♦ Saw blade grinding base can be customized for grinding minimum diameter 40mm.

Note:

GD-450Q Automatic circular saw blade grinding machine can sharpen the circular saw blades (dia.50~450mm, thickness 8mm) and other cutting tools. This machine is mainly for HSS saw blade grinding, but also capable of carbide tipped saw blade grinding (customized grinding wheel required).

Saw blade diamter	Φ50 ~ 450mm
Pitch range	MAX 25mm
Depth of teeth	MAX 8mm
Cutting angle	0°-30°
Feed speed	45-180teeth /min
grinding wheel diameter	70-150mm
Driver motor	1/2Hp
Speed of Grinding wheel	4200rpm
Net weight	145Kg
Package size LxWxH	800x500x1200mm
