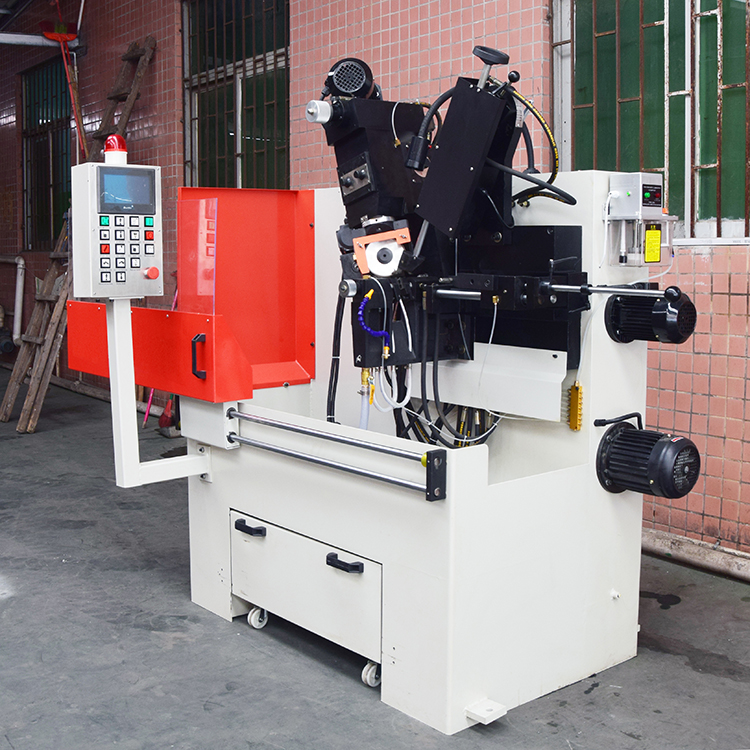

ND-127B Automatic Alloy Saw Blade Grinder

Carbide saw blades grinder

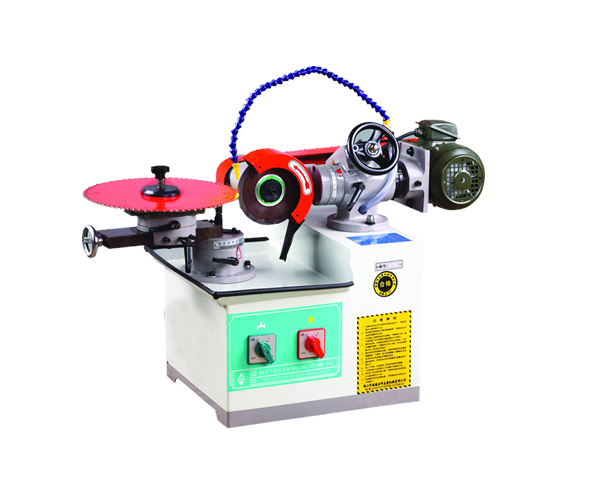

circle saw blades grinder
Product description:
INQUIRY

Features:

♦ This machine is mainly used for sharpening various cutting angles of hard alloy circular saw blades;

♦ Using a diamond grinding wheel, can grind the tooth face, the tooth top, the bevel angle of the tooth face, the bevel angle of the tooth tip, etc;

♦ Wide applicability, simple and flexible operation, accurate positioning;

♦ The saw blade diameter, angle and pitch are easy to adjust. After inputting the corresponding data, the machining program is automatically complete the process;

♦ High performance of each adjustment part, can also repair various angles of hard alloy circular saw blade;

♦ The machine can also grind flat teeth, skew teeth, staggered teeth, trapezoidal teeth, combined teeth and other teeth of hard alloy circular saw blades;

♦ Suitable for wood processing, blade manufacturing, furniture manufacturing, shipbuilding, telecommunications equipment manufacturing industries, etc;

♦ The circuit part of the machine uses a PLC control system to simplify the traditional switch button control;

♦ The man-machine interface setting operation is simple and easy to learn, convenient, and highly reliable. It has automatic data protection function and is convenient and flexible to set up.

The machine circuit part using PLC control system, simplify the traditional switch button control;

Through the man-machine interface setting operation, simple and easy to learn, convenient, high reliability, With automatic data protection function, convenient and flexible setting.

Model	GD-127B
Saw blade diameter	φ125-φ500mm
Grinding saw blade aperture	φ16、φ20、φ22、φ25、φ30、φ35、φ40、φ50、φ60mm
Max serration thickness	8mm
Max grinding wheel diameter	φ125、φ150mm
Grinding wheel aperture	φ32mm
Max dial tooth angle	30°
Grinding wheel spindle speed	5800r/min
Grinding wheel motor power	550W
Feed motor power	60W
Dial the tooth motor speed	0-24 Tooth/min（infinitely variable speeds）
Belt specification	6PJ-1080mm
Machine size	1100x850x1380mm
